STAIRTEC SWP Stainless steel stair nosing tactile buttons - 2d files - 3d files

PRODUCT DESCRIPTION

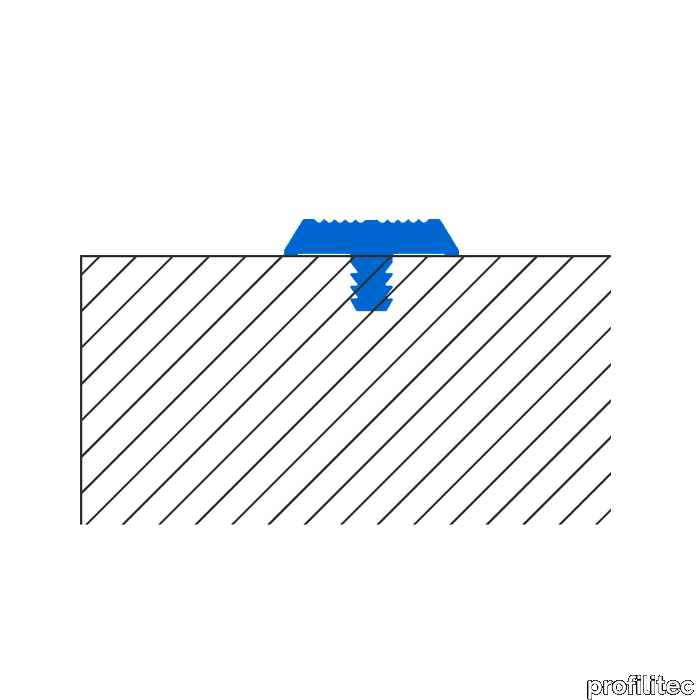

STAIRTEC SWP Stainless steel stair nosing tactile buttons STAIRTEC SWP is an innovative stainless steel button part of the SWR series. Its 5mm protruding shape makes this element highly visible, ideal for staircases and marked walkways. The grooved button shank provides adhesive grip. Installation and assembly can be made on or off-site. To install on wood flooring, simply drill a 6.5mm hole and hammer the button in place. The buttons should be spaced 70mm on center. To install on natural stone or ceramic tile flooring, simply drill a 7mm hole and fasten the button with the appropriate adhesive. The buttons should be spaced 70mm on center. STAIRTEC SWP the anti slip button for the stairs The SWP series is R11 certified. Non-slip properties. DIN 51130 (06/2004): slip resistance with footwear.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Stairtec SWP - Datasheet - Profilitec_Catalogue-page_Stairtec-SWP_NA.pdf
