SQUAREJOLLY SJR trims for ceramic stair nosing - 2d files - 3d files

PRODUCT DESCRIPTION

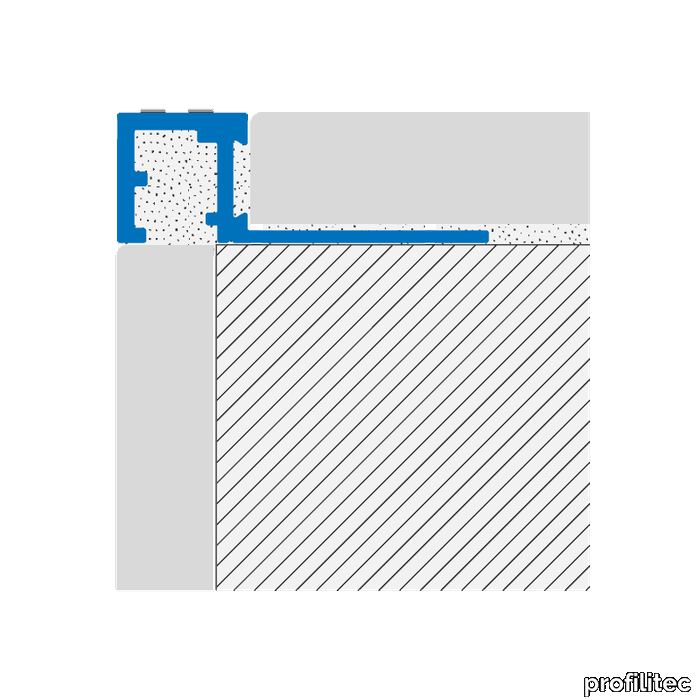

SQUAREJOLLY SJR trims for ceramic stair nosing SQUAREJOLLY SJR with Resin Grip is a square section profile designed to finish and protect the tile’s edges from shocks and mechanical impacts. Minimal and modern design, ideal for residential projects. The resin stripes on the upper surface make the Squarejolly SJR anti slip, certified R11. The profile is also resistant to abrasion (PEI 3) and to chemical agents.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Squarejolly SJR - Datasheet - Profilitec_Catalogue-page_Squarejolly-SJR_NA.pdf
