STAIRTEC FW stair nosing trims in solid wood - 2d files - 3d files

PRODUCT DESCRIPTION

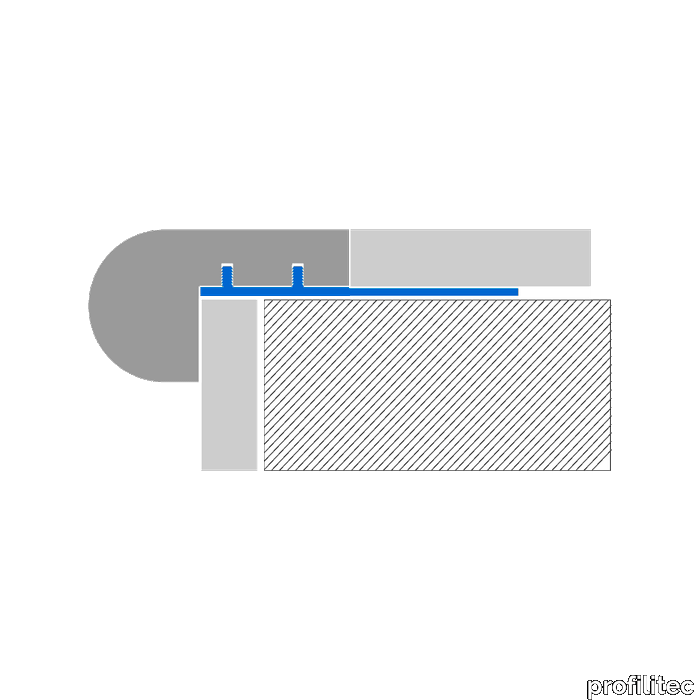

STAIRTEC FW stair nosing trims in solid wood STAIRTEC FW is a stair nosing profile in solid oak with a perforated aluminium base that inserts into the mortar, ensuring maximum grip and stability. Its simple, curved design can be applied in both modern and traditional designs. Particularly ideal for residential applications, STAIRTEC FW can even be used for edging tiled kitchen countertops.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Stairtec FW - Datasheet - Profilitec_Catalogue-page_Stairtec-FW_NA.pdf
