STAIRTEC SR stair nosing trims - 2d files - 3d files

PRODUCT DESCRIPTION

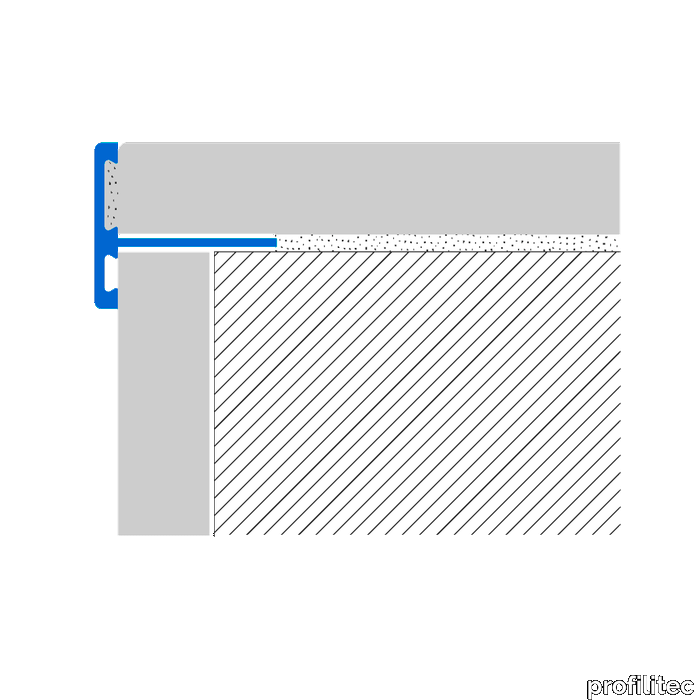

STAIRTEC SR stair nosing trims Practical and easy to clean, STAIRTEC SR can be used as stair nosing and trimming for all exposed edges. Its extended vertical edge conceals and protects the riser edge, preventing future cracking and chipping. The unique sectional design can match two different floor thicknesses with the same reversible profile. The patented section is designed with vertical dovetail anchoring.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Stairtec SR - Datasheet - Profilitec_Catalogue-page_Stairtec-SR_NA.pdf
