STAIRTEC AE ribbed aluminium or brass stairnosing trims - 2d files - 3d files

PRODUCT DESCRIPTION

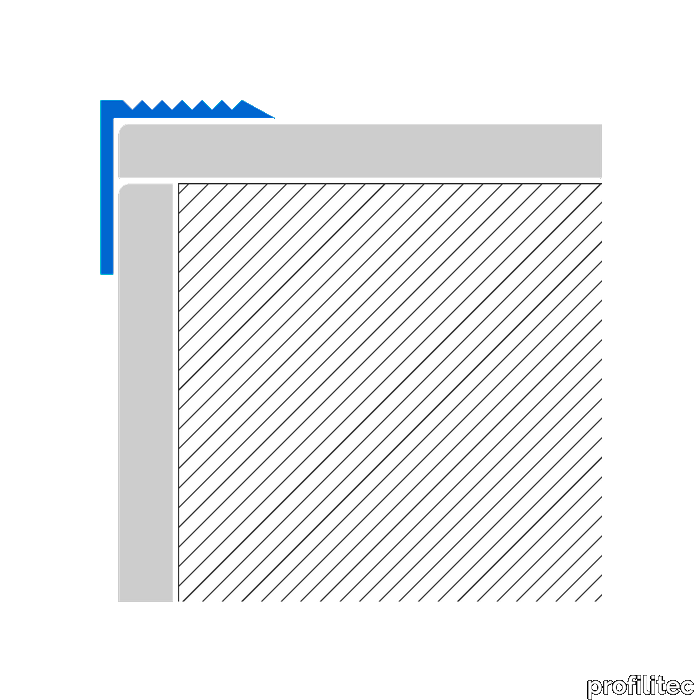

STAIRTEC AE ribbed aluminium or brass stairnosing trims STAIRTEC AE profiles offer a practical solution to common challenges faced with step treads, such as chipping along vulnerable step edges. The 90° section hides edge imperfections, conceals the riser edge and prevents future cracking while acting as a design element of the staircase. The profile must be fastened with flathead screws.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Stairtec AE - Datasheet - Profilitec_Catalogue-page_Stairtec-AE_NA.pdf
