MOSAICTEC SJM Trims for mosaic and low thickness materials - 2d files - 3d files

PRODUCT DESCRIPTION

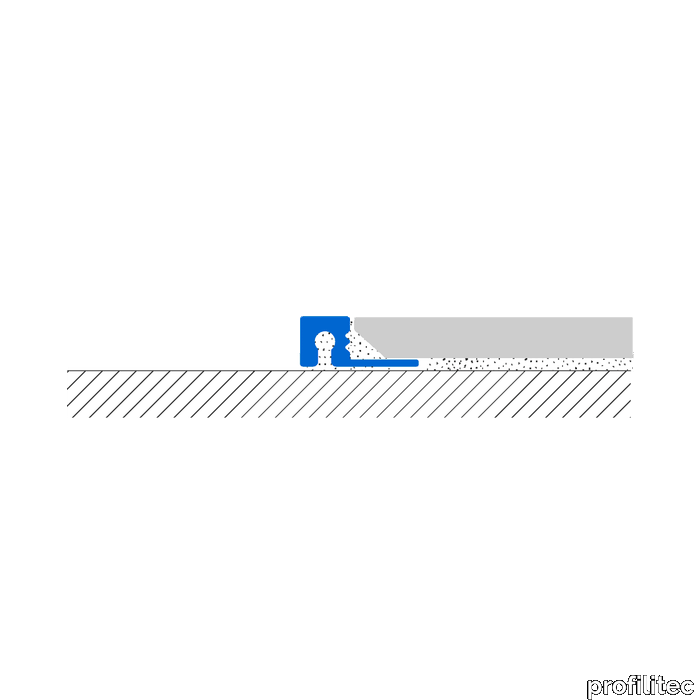

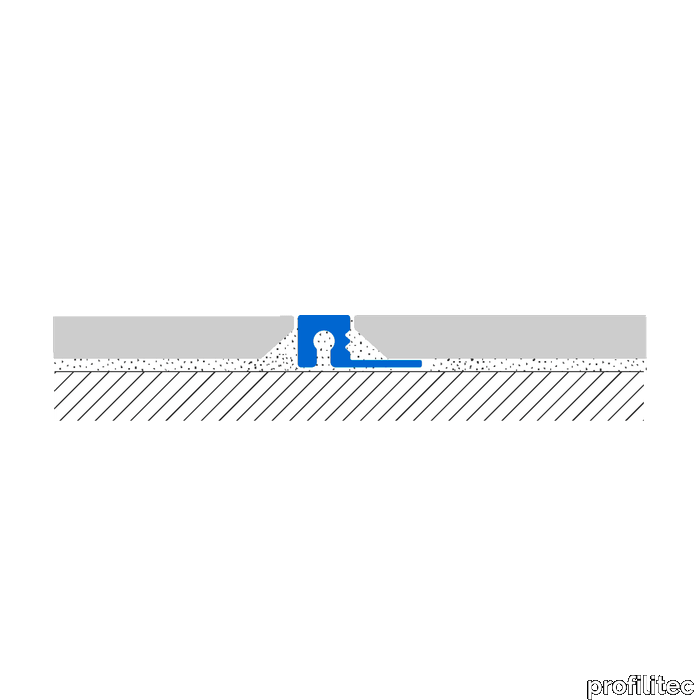

MOSAICTEC SJM Trims for mosaic and low thickness materials MOSAICTEC SJM is a multipurpose profile which joins floor and wall coverings. It can also be used as edging or as a decorative insert due to its perfectly symmetrical shape. This profile was especially conceived for thin floors and mosaics. Its short and thin flange grasps the wall or floor covering, creating a clean and level finished surface. MOSAICTEC SJM belongs to a series of profiles uniquely designed for mosaics. A specially-designed multipurpose cubic endcap suits all installation needs.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Resilient - LVT - Brochure - Brochure Resilient pagine singole.pdf
