MULTICLIPLVT CLG Transition trims for LVT floors - 2d files - 3d files

PRODUCT DESCRIPTION

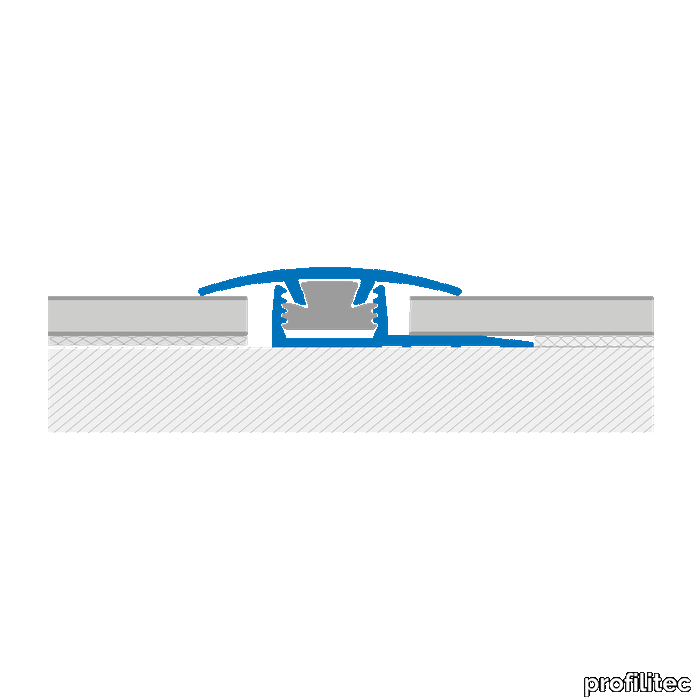

MULTICLIPLVT CLG Transition trims for LVT floors Patented coplanar joint profile. The innovative, ingenious clip system in Resinil (thermoplastic synthetic resin) allows, by simple rotation, to compensate level differences of up to 1.5 mm. The system used with (base) CLB40ANF and (clip) CL40P can also join floors with thicknesses varying from 4 to 6 mm. It additionally acts as a movement joint profile, since the internal cavity allows the underlying flooring to move up to ± 2 mm.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Resilient - LVT - Brochure - Brochure Resilient pagine singole.pdf
