ZEROTEC ZLT - 2d files - 3d files

PRODUCT DESCRIPTION

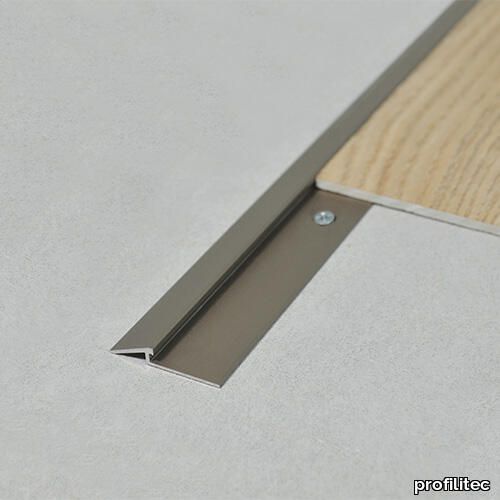

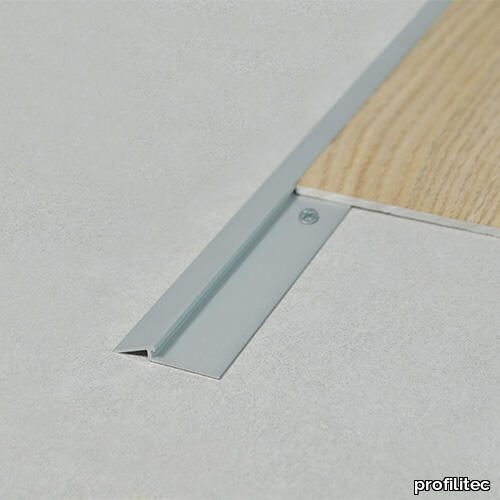

ZEROTEC ZLT Resilient materials are commonly used for floors and walls as well as over existing flooring. For thinner flooring materials, we recommend profiles that can be solidly anchored and provide maximum edge protection. The ZEROTEC family of profiles meets these needs by providing a solid base with tapered openings for mechanical fastening or to be adhered using appropriate adhesive. ZLT profiles provide sloped and ADA-compliant edge protection for resilient flooring materials of different heights ranging from 0 to up to ¼” (6mm).

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Resilient - LVT - Brochure - Brochure Resilient pagine singole.pdf
