MULTICLIP CLF490 Transition trims for floors with different heights - 2d files - 3d files

PRODUCT DESCRIPTION

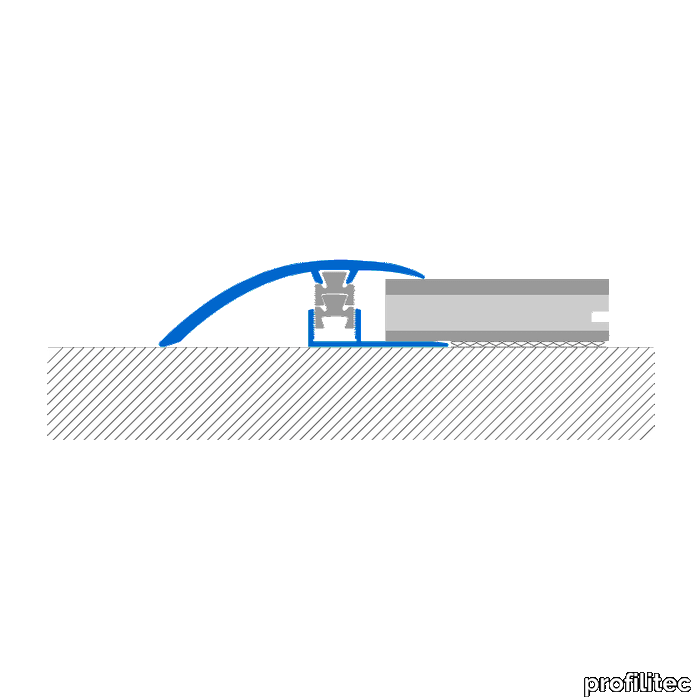

MULTICLIP CLF490 Transition trims for floors with different heights The patented MULTICLIP® CLF 490 profile is shaped to easily join floor thicknesses from 12 to over 18mm. A specially-designed wing section transitions ceramic tile and wood flooring with pre-existing floors or thin floor types such as moquetteing and vinyl. The ingenious joint allows the wing profile to rotate and perfectly compensate floor elevation differences.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Multiclip CLF490 - Datasheet - Profilitec_Catalogue-page_Multiclip-CLF490_NA.pdf
