WOODTEC LP edging trims for wooden floors - 2d files - 3d files

PRODUCT DESCRIPTION

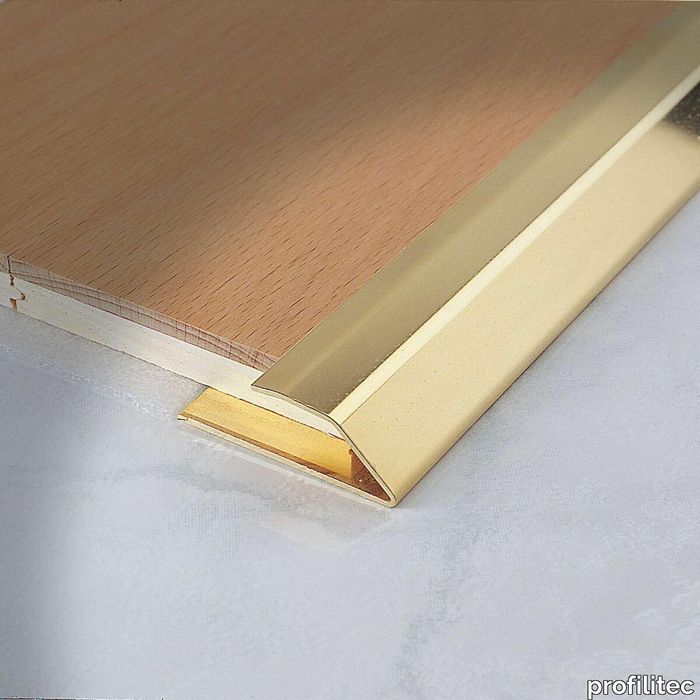

WOODTEC LP edging trims for wooden floors The WOODTEC LP profiles are specifically designed for finishing the perimeter of floating wood floors. The pointed, sloping shape of this profile ideally transitions to existing flooring or floors at lower elevations. The internal gap acts allows for differential movement. Installed with flathead screws.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Woodtec LP - Datasheet - Profilitec_Catalogue-page_Woodtec-LP_NA.pdf
