VARIOTEC DR Transition trims to be used after flooring installation - 2d files - 3d files

PRODUCT DESCRIPTION

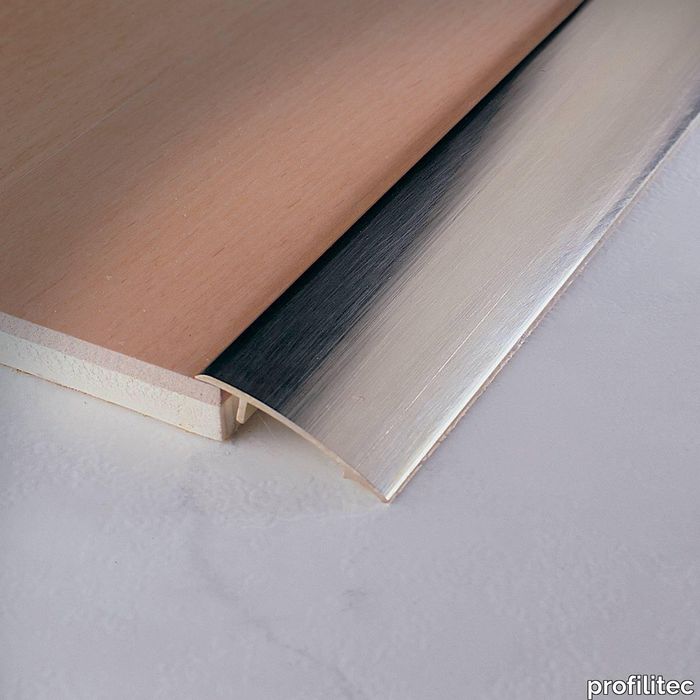

VARIOTEC DR Transition trims to be used after flooring installation VARIOTEC DR are stainless steel or brass profiles used as a transition between already installed floors of different nature and level. Self-adhesive: they are supplied with a particular elastomer which allows an easy and quick application. For installation, simply remove the protective film from the adhesive and apply the profile, cut to the required length, with uniform pressure. For a good seal, the support surface must be smooth, clean and dry.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Variotec DR/DS/LS - Datasheet - Profilitec_Catalogue-page_Variotec-DR-DS-LS_NA.pdf
