ZEROTEC ZRM Ramp trims for floors with different heights - 2d files - 3d files

PRODUCT DESCRIPTION

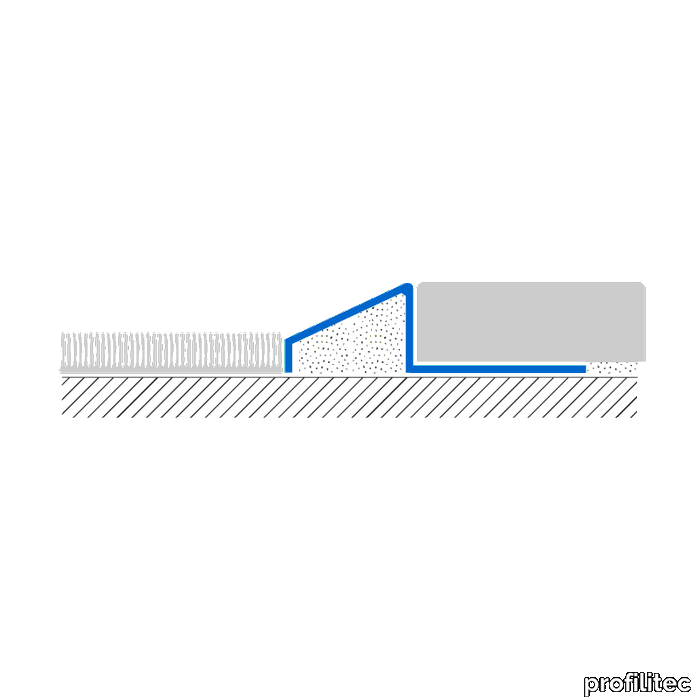

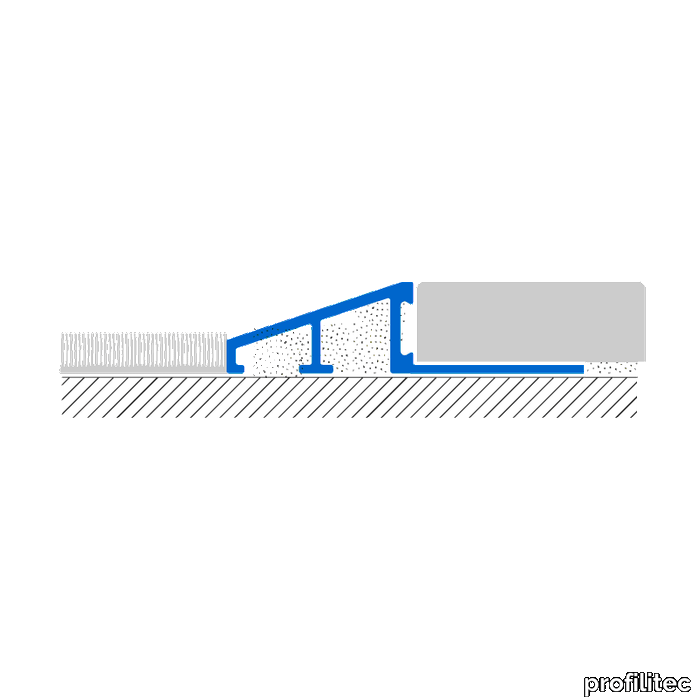

ZEROTEC ZRM Ramp trims for floors with different heights ZEROTEC ZRM profile is the ideal solution for joining two floors at different levels, between a ceramic covering and one in moquette moquetteing for instance. This trim allows a 5 mm progressive sloping difference to the next floor to match thus making safer when treading over the connecting floors. The ramp inclination has been conceived for vehicle and wheel carts transit.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Zerotec ZRM - Datasheet - Profilitec_Catalogue-page_Zerotec-ZRM_NA.pdf
