LINETEC PU Transition trims for floors with the same height - 2d files - 3d files

PRODUCT DESCRIPTION

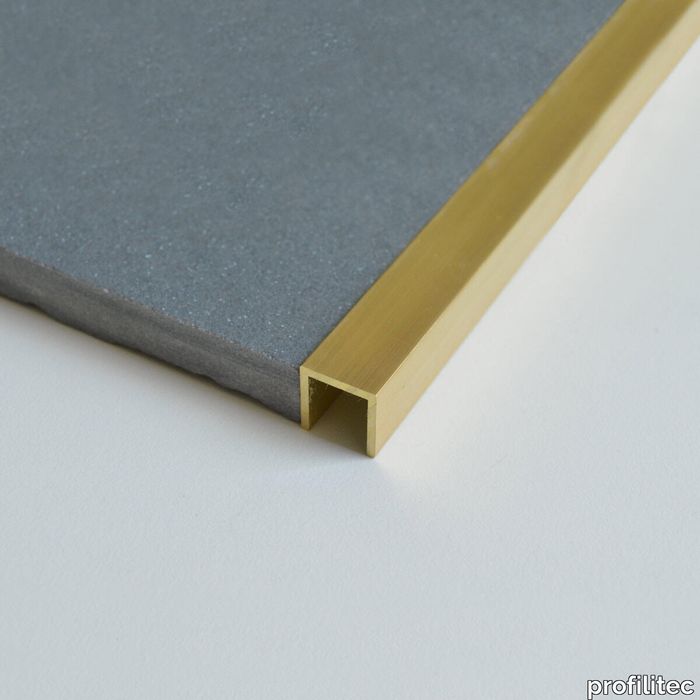

LINETEC PU Transition trims for floors with the same height Extruded U-shaped brass profile for transition between floors already installed of 10 mm thick. It solves quickly and with an excellent aesthetic result the most frequent transition situations between floors of different nature, where an appropriate connection system has not been foreseen at the time of installation.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Leveltec ZP + Linetec PR - PQ - PU - Datasheet - Profilitec_Catalogue-page_Leveltec-RP - RPR_NA.pdf
