LINETEC PQ Transition trims for floors with the same height - 2d files - 3d files

PRODUCT DESCRIPTION

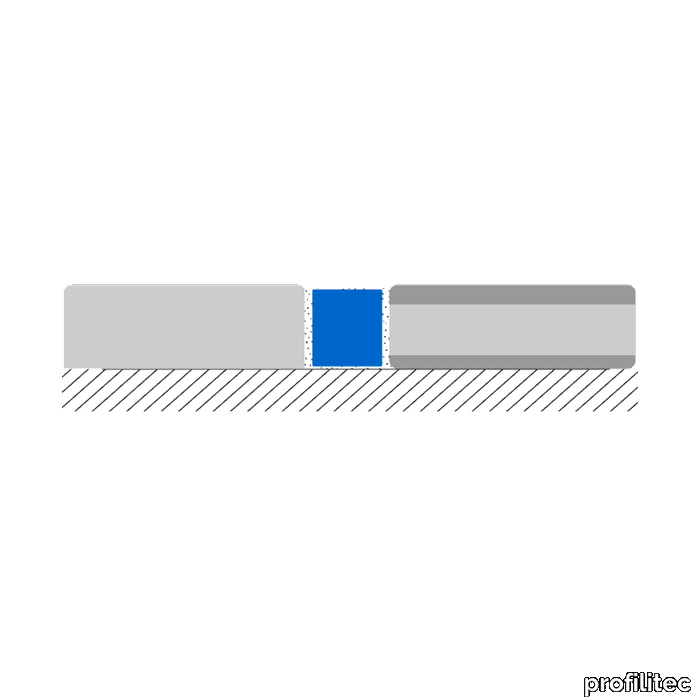

LINETEC PQ Transition trims for floors with the same height Profiles in extruded brass or stainless steel for transition between floors already installed. It fits between floors of 10 mm thick. They allow to solve quickly and with an excellent aesthetic result the most frequent transition situations between floors of different nature, where an appropriate transition system has not been foreseen at the time of installation.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Leveltec ZP + Linetec PR - PQ - PU - Datasheet - Profilitec_Catalogue-page_Leveltec-RP - RPR_NA.pdf
