LINETEC PR Transition trims - 2d files - 3d files

PRODUCT DESCRIPTION

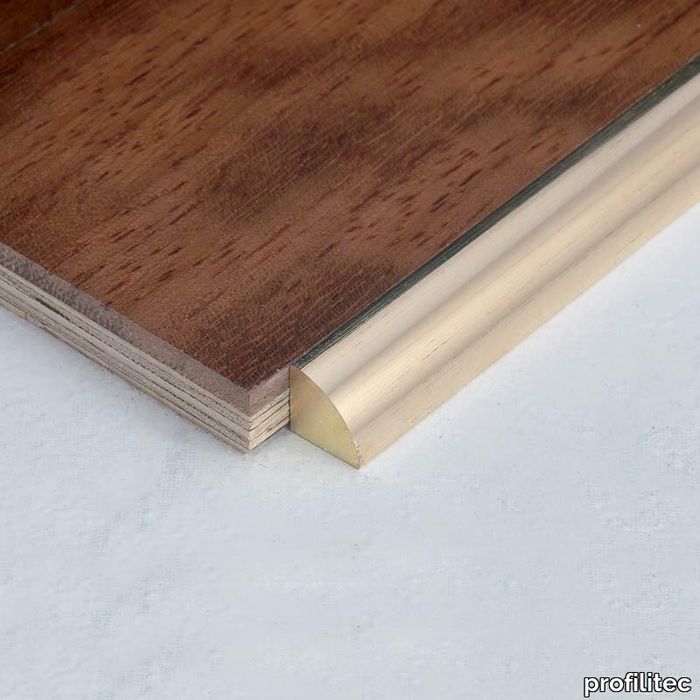

LINETEC PR Transition trims Extruded brass transition profile. Perimeter profile for wooden floors or ceramic with thickness 10 mm. They allow to solve quickly and with an excellent aesthetic result the most frequent junction situations between floors of different nature, where an appropriate connection system has not been foreseen at the time of installation.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Leveltec ZP + Linetec PR - PQ - PU - Datasheet - Profilitec_Catalogue-page_Leveltec-RP - RPR_NA.pdf
