CUBETEC FI: Transition trims for floors with the same height - 2d files - 3d files

PRODUCT DESCRIPTION

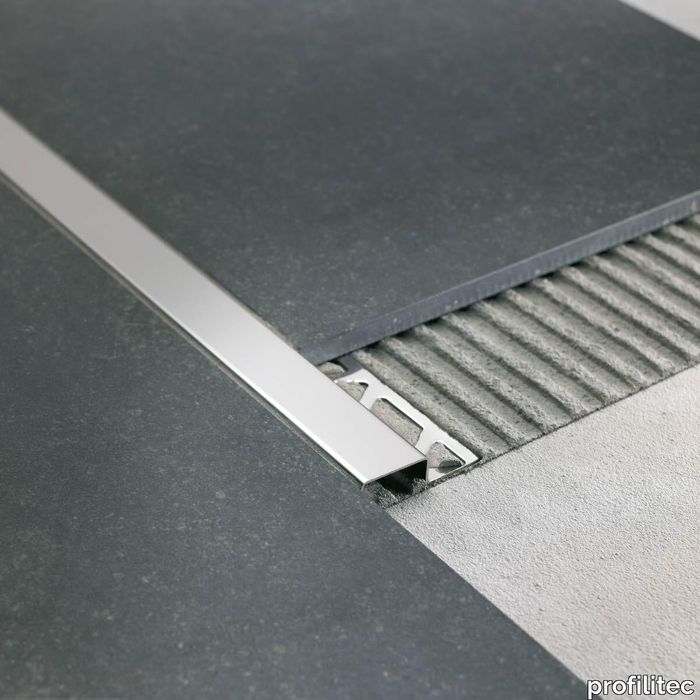

CUBETEC FI: Transition trims for floors with the same height CUBETEC FI is a linear and decorative finishing element which provides long-lasting and heavy-duty tile edge protection. The CUBETEC FI profile is a decorative joint between different flooring types, trimming for ceramic tile and suitable for welcome mat framing. Two profile widths are available in polished stainless steel AISI 304.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Cubetec CU + FI - Datasheet - Profilitec_Catalogue-page_Cubetec-CU-FI_NA.pdf
