WOODTEC LG edging trims for wooden floors - 2d files - 3d files

PRODUCT DESCRIPTION

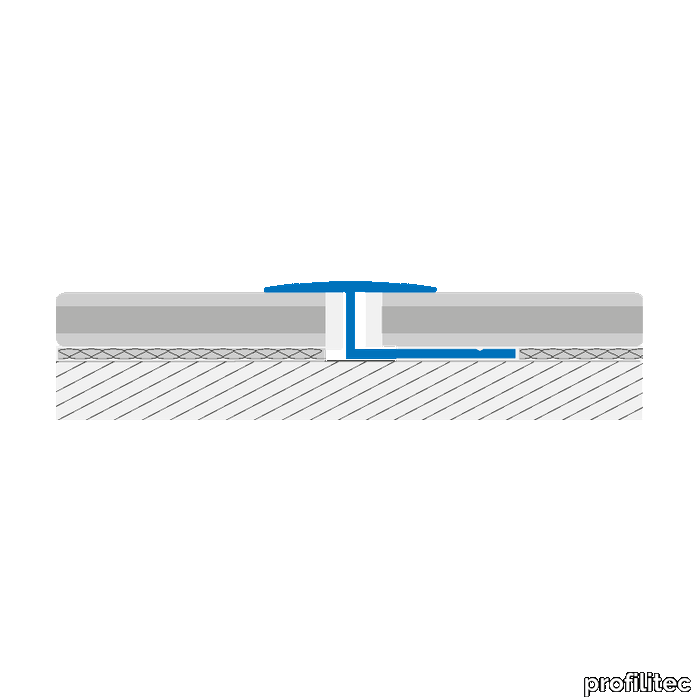

WOODTEC LG edging trims for wooden floors WOODTEC LG profiles are specifically designed to join two adjoining floating wood floors. The size and shape of the profile section allows for differential movement typical of wood flooring. Its smooth top surface fits under doorways making it perfectly suitable for thresholds.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Woodtec LG - Datasheet - Profilitec_Catalogue-page_Woodtec-LG_NA.pdf
