STRIPTEC STB: Transition trims for floors with the same heights - 2d files - 3d files

PRODUCT DESCRIPTION

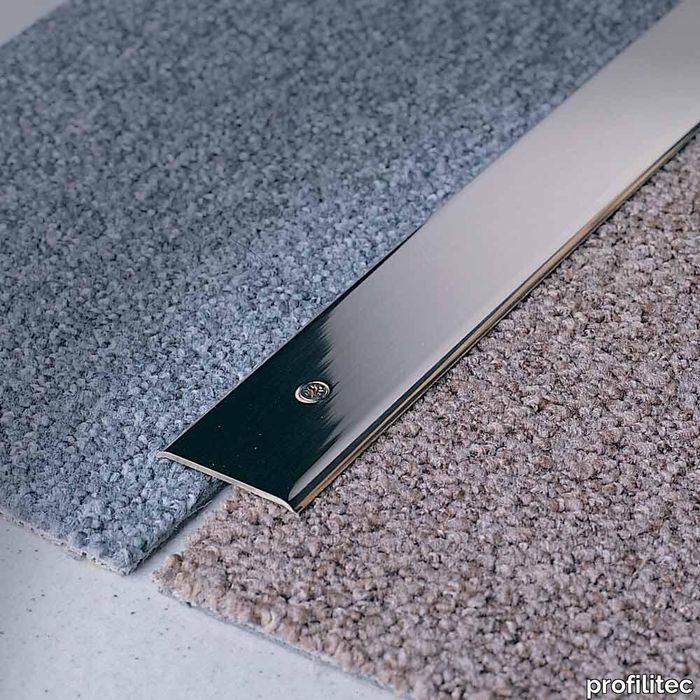

STRIPTEC STB: Transition trims for floors with the same heights STB profiles in brass or aluminium (available in the adhesive or perforated version) for connection or threshold cover with smooth brass and aluminium grooves. The shaped edge allows perfect contact with the floor. Suitable for eliminating laying defects and creating expansion joints.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Striptec ST/STB - Datasheet - Profilitec_Catalogue-page_Striptec-ST-STB_NA.pdf
