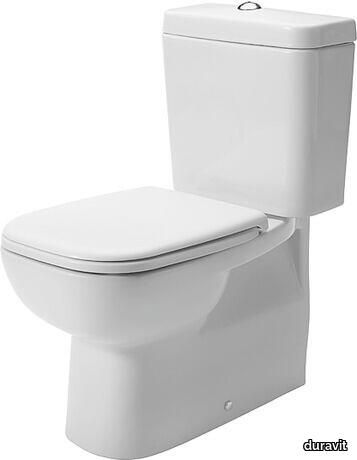

D-Code Toilet close-coupled - 2d files - 3d files
PRODUCT DESCRIPTION
Flush water quantity: 6/3 l, Washdown model, Flushing rim: Open, Outlet drain: horizontal, Position outlet: Back, Incl. cistern: No, Flush principle: Displacement, For bowl mounted cistern, Length adjustable, UWL-class: 2, Incl. mounting material, Outlet dimensions for Vario connecting bend vertical: 155 - 235 mm, Outlet dimensions for Vario outlet set vertical/horizontal: 70 - 185 mm Design by sieger design
SUPPLIER: DURAVIT
TYPE: SANITARY
SKU: 211809
LIST OF FILES:
Mounting instruction - getzip.com-en.zip
